Description
PTFE and Kevlar Threads are commonly used to sew protective apparel or insulation blankets.
Other Information
- Sold in 2 lb rolls
Approximate Yield: E-18 2000 yd/lb; E-24 1500 yd/lb

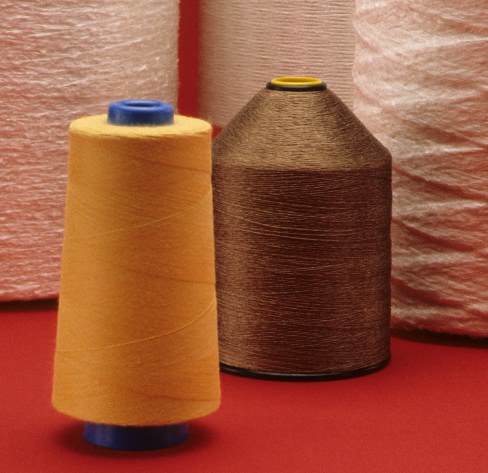

- PTFE-coated sewing thread is manufactured from continuous filament fiberglass yarn. The fiberglass yarn is coated uniformly with PTFE for strength and chemical resistance.
- The PTFE coating will burn off at around 600F / 315C
- Meets MIL-SPEC MIL-C-20079 Type 3, Class 3
- Tested to ASTM D4030M Specifications
SKU
Diameter (mm)
Diameter (in)
Fiber Type
Finish/Coating
Operating Temperature (ºC)
Operating Temp (ºF)
Peak Temperature (ºC)
Peak Temp (ºF)
Tensile Strength (N)
Tensile Strength (lbf)
18 lbf (E-18)
1400001
0.46
0.018
Filament Fiberglass
PTFE
540.0
1000.0
80
18
25 lbf (E-24)
1400002
0.53
0.021
Filament Fiberglass
PTFE
288.0
550.0
540.0
1000.0
111
25
